specifications

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
12970 1/4 1200 23.4 1315 110-263
13000 5/16 600 18.3 2050 171-410
13050 3/8 600 26.1 2900 242-580
13150 1/2 600 46.2 5085 424-1017
13200 5/8 600 72 7825 652-1565
13250 3/4 600 103.2 11,200 933-2240
13350 1 600 182.4 19,775 1648-3955

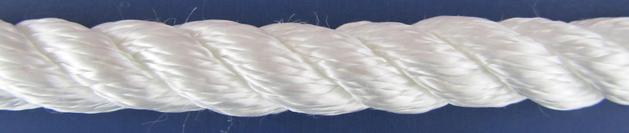

3 Strand Twisted polyester

This high strength heavy synthetic fiber is resistant to ultraviolet deterioration giving it greater weather resistance than either nylon or manila. Due to polyester’s low water absorbency; only slight strength loss is experienced when wet. Polyester does not have the stretch and elasticity of nylon. Polyester is superior to nylon with respect to cycle loading and abrasion. Good for high friction uses like marine running, rigging and stringing line. Also great for tree rope, truck rope, antenna guy lines and common utility rope.

* Other sizes available upon request

** Do not exceed Working Load Limits
