specifications

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
O9949 1/8 600 3.5 325 27-65
O9955 1/8 3000 10.5 325 27-65
10000 3/16 600 3.9 650 54-130
10017 3/16 1200 7.8 650 54-130
10023 3/16 2400 15.6 650 54-130
10034 3/16 3600 23.4 650 54-130
10050 1/4 600 6.9 1125 94-255
16120 1/4 1200 13.8 1125 94-255
10076 1/4 2400 27.6 1125 94-255
10090 1/4 5000 57.5 1125 94-255
10100 5/16 600 10.8 1710 143-342
10105 5/16 1200 21.6 1710 143-342
10108 5/16 2400 43.2 1710 143-342
16121 3/8 600 15.6 2430 203-486
10175 3/8 1200 31.2 2430 203-486
16150 3/8 2400 62.4 2430 203-486
19146 1/2 600 27.6 3780 315-756
10275 1/2 1200 55.2 3780 315-756
10300 5/8 600 43.2 5580 465-1116
10325 5/8 1200 86.4 5580 465-1116
10350 3/4 600 62.4 7650 638-1530
10375 3/4 1200 124.8 7650 638-1530
10450 1 600 108 12,825 1069-2565
10467 1 1200 216 12,825 1069-2565
10500 1 1/8 600 136.8 16,000 1333-3200
10550 1 1/4 600 165.6 19,350 1613-3870
10650 1 1/2 600 236.4 27,350 2279-5470

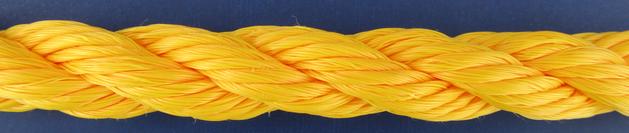

3 Strand Twisted polypropylene

This premium general purpose monofilament rope is strong, lightweight, spliceable and used extensively for most rope requirements. This rope’s highly visible bright yellow color makes it an excellent choice for roping off construction site areas. This economical synthetic rope is nearly twice as strong as manila and it’s smooth surface makes it easier to handle than natural fiber ropes. Polypropylene resists bending and flexing, but continued wear causes roughness and increased knot holding ability. An excellent insulator; polypro-pylene is used by utility companies for low dielectric loss and may be used safely around “hot” wires. Not recommended for use on bitts and capstans where heat is a factor because it tends to stick and fuse. Although an ultraviolet inhibitor (UV) is added during the extrusion process, this rope will lose strength depending upon the amount of ultraviolet radiation is it exposed to. This rope floats and is unaffected by rot, mildew, oil, gasoline, water and most chemicals. Polypropylene has a low flammability, but will still burn very slowly.
Yellow is our standard color, but other colors are also available.

* Ask about other colors and sizes.

** Do not exceed Working Load Limits
