| ITEM | DIAMETER | LENGTH | WEIGHT | TENSILE | WORKING LOAD LIMIT |
| # | INCHES | FEET | LBS | STRENGTH | RANGE -LBS |
| 23150 | 3/16 | 1000 | 8 | 160 | 13-32 |
| 23250 | 7/32 | 1000 | 11 | 400 | 33-80 |
| 23350 | 1/4 | 1000 | 15 | 490 | 41-99 |
| 23500 | 5/16 | 1000 | 22 | 750 | 63-150 |
| 23650 | 3/8 | 1000 | 32 | 1050 | 88-210 |
| 23800 | 1/2 | 1000 | 44 | 1400 | 116-280 |
specifications

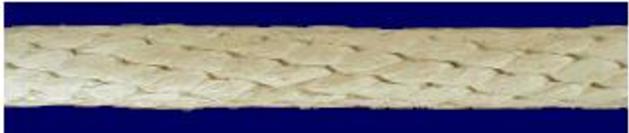

A firm round lock-stitch cotton braid with a glazed finish. A synthetic fiber core makes this cord twice as strong as pure cotton. For handling quality, cotton is hard to beat. It is soft and pliable and easy on the hands. Cotton sash cord is an all-purpose cord with unlimited applications.
* Other sizes available upon request
** Do not exceed Working Load Limits
