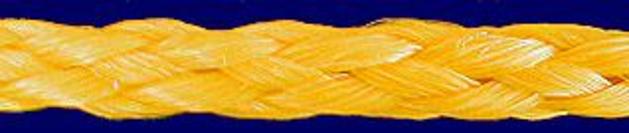

This rope is constructed of 8 or 12 strands with a hollow center. The diamond braid construction of this cord is easy on the hands and allows quick splicing. This cord is great for barriers, tie downs, flagpole halyards, floating lines, and lifelines.

Standard colors are yellow, white and black.

* Ask about other colors and sizes.

** Do not exceed Working Load Limits

hollow braid polypropylene

specifications

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
18089 1/8 1000 3 200 17-40
18084 1/8 3000 9 200 17-40
18100 3/16 1000 6.5 400 37-90
18200 1/4 1000 9 900 83-200
18250 5/16 1000 12.5 1200 125-300
18300 3/8 1000 19 1700 175-420
18350 1/2 1000 26.5 2200 223-535
18392 5/8 500 30 3500 290-700
18394 3/4 500 40 5000 416-1000
